macOS 10.14.5 beta 2, Kernel Extension Notarization, UAMDM, Whitelisting and You

Editor’s Note: This is an evolving topic and by the time you come across this in a search engine, circumstances may have changed. Treat this post as a frozen moment in time, things may have evolved for better or worse in the intervening weeks.

BLUF: If you are whitelisting kernel extensions on Macs with UAMDM, by Team ID, or by Team ID and Bundle ID, notarization is not necessarily required as of beta 2 of macOS 10.14.5. Those without UAMDM-defined kernel extension whitelists will need to make sure that kernel extensions are installed with both valid signatures and a correct notarization secureTimestamp.

Kernel Extension Signing in macOS 10.14.5 beta 2

Let’s begin with the recitals: beginning with macOS 10.14.5’s release, kernel extension signing is no longer sufficient. Kernel extensions updated after March 11th, 2019, or created for the first time after that date, will need to be notarized as well as signed. This means that your application and all attendant parts must have been signed and notarized by Apple. Here is how Apple explains this:

Notarization gives users more confidence that the Developer ID-signed software you distribute has been checked by Apple for malicious components. Notarization is not App Review. The Apple notary service is an automated system that scans your software for malicious content, checks for code-signing issues, and returns the results to you quickly. If there are no issues, the notary service generates a ticket for you to staple to your software; the notary service also publishes that ticket online where Gatekeeper can find it.

Notarizing Your App Before Distribution, Apple Developer Documentation

We had two easy tests for how this operated. Once macOS 10.14.5 beta 2 was installed on my daily driver, I downloaded updates to two of the apps we use that have kernel extensions and had been updated after March 11th: VMware Fusion Pro 11.0.3 and Kerio’s VPN Client 9.3.0.

On install of the new VPN Client, I received the following dialog:

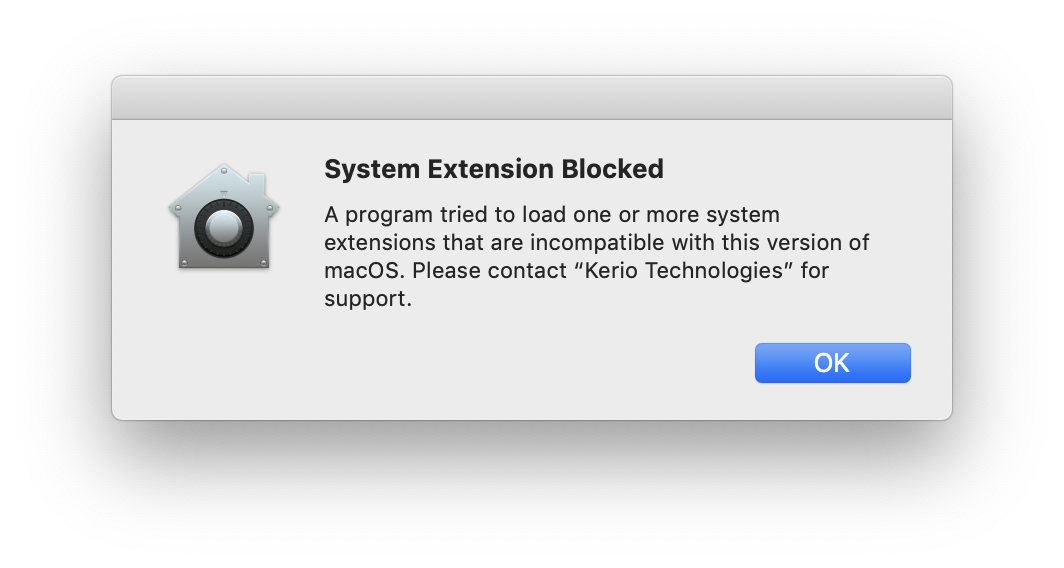

Rejection Dialog from macOS for an invalid kernel extension

Kerio’s VPN Client was now dead in the water and not functional, no matter what I could do to follow up. An inspection (which requires Xcode 10.2 and not just the command line tools) of the kvnet.kext file in /Library/Extensions indicated I did not have a valid kernel extension any longer:

Persephone: tom$ stapler validate -v /Library/Extensions/kvnet.kext/
Processing: /Library/Extensions/kvnet.kext
Properties are {
    NSURLIsDirectoryKey = 1;
    NSURLIsPackageKey = 1;
    NSURLIsSymbolicLinkKey = 0;
    NSURLLocalizedTypeDescriptionKey = "Kernel Extension";
    NSURLTypeIdentifierKey = "dyn.ah62d4qmuhk2x445ftb4a";
    "_NSURLIsApplicationKey" = 0;
}
Props are {
    cdhash = <5bf723ec 9f7a0027 4592266d 0514db04 5f1760bb>;
    digestAlgorithm = 1;
    flags = 0;
    secureTimestamp = "2019-04-08 12:34:03 +0000";
    signingId = "com.kerio.kext.kvnetnew";
    teamId = 7WC9K73933;
}
kvnet.kext does not have a ticket stapled to it.

Without a valid ticket stapled to the kext, I was going to have a problem running it, as the secureTimestamp value is after 2019-03-11.

Well crap. I need that kernel extension to work for my VPN to client locations to work, so how am I going to get around it? Thanks to #notarization on the Mac Admins Slack, and Allen Golbig at NASA Glenn, Graham Pugh, and the help of others, the answer was already in our hands: User-Accepted Mobile Device Management and Team ID Whitelisting in the Kernel Extensions Whitelisting payload in MDM.

If you have a Mac with UAMDM (either via actual user acceptance, or via implied acceptance through Automated Enrollment), and you are specifying the Team ID of kernel extensions that you want to be whitelisted the new requirement of kernel extension whitelisting is transitive, meaning checks are not made to the notarization of the kernel extension, as the signing of the kernel extension is sufficient to its privileged execution.
